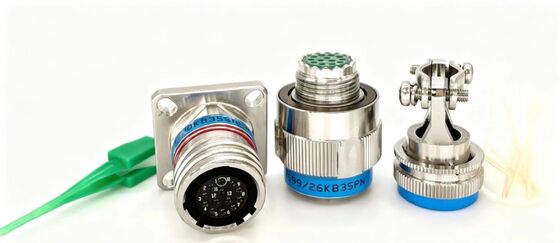

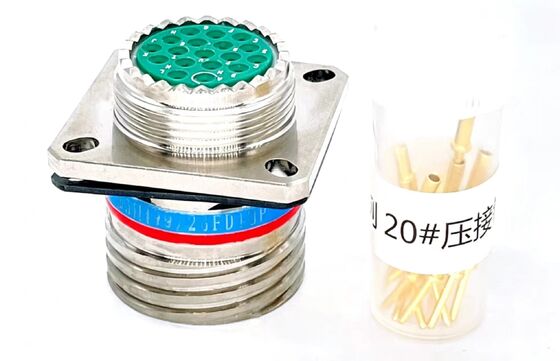

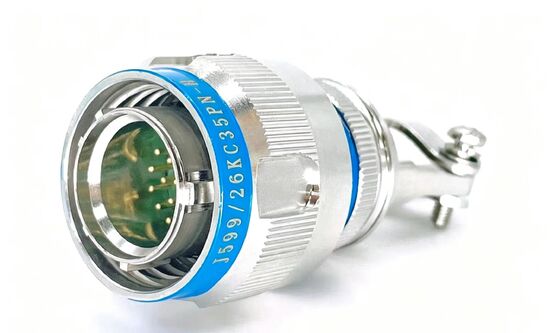

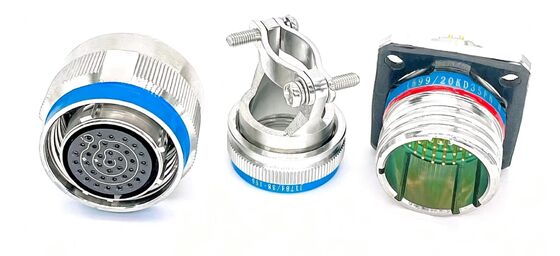

The J599 circular electrical connector is compatible with the U.S. standard D38999 aviation plug and is compatible with AVIC Optoelectronics J599.

Product Description:

Servo Motor Connectors are essential components designed to ensure reliable and efficient connectivity in various servo motor applications, including Electro Hydraulic Servo systems, AC Servo Drive units, and Hydraulic Brake Motors. These connectors are engineered to meet the demanding requirements of modern industrial and automation environments, providing secure electrical connections that guarantee optimal performance and durability.

One of the key features of our Servo Motor Connectors is the availability of multiple gender options, including 4PIN, 6PIN, 8PIN, 12PIN, and 17PIN configurations. This wide range of pin counts allows for versatile application across different servo motor setups, accommodating various signal and power transmission needs. Whether you are working with compact AC Servo Drive systems or more complex Electro Hydraulic Servo mechanisms, these connectors offer the flexibility to match your specific wiring and control requirements.

The connectors are designed with two primary mounting types: Panel Mount and Cable Mount. The Panel Mount option is ideal for fixed installations where the connector needs to be securely attached to a control panel or enclosure, ensuring a stable and robust connection point. On the other hand, the Cable Mount variant is tailored for applications requiring direct cable integration, facilitating seamless wiring and reducing assembly time. Both mounting types are crafted to withstand the rigors of industrial environments, providing excellent mechanical strength and resistance to vibration.

In terms of termination, our Servo Motor Connectors support both Crimp and Solder methods. The Crimp termination offers a fast and reliable way to attach wires, ensuring consistent electrical contact and mechanical retention without the need for heat. This method is especially beneficial in high-volume production scenarios or field installations where speed and reliability are paramount. Meanwhile, the Solder termination provides a permanent and highly conductive connection, preferred in applications where maximum electrical integrity and durability are required, such as in precision AC Servo Drive systems.

The insulation resistance of these connectors is a critical parameter that guarantees safety and signal integrity, particularly for 6PIN and 7PIN configurations. High insulation resistance minimizes the risk of electrical leakage, interference, and short circuits, which is vital for maintaining the accuracy and responsiveness of Electro Hydraulic Servo controls and Hydraulic Brake Motors. This attribute ensures that the connectors can perform reliably even in harsh industrial conditions, where exposure to moisture, dust, and temperature fluctuations is common.

Our Servo Motor Connectors are specifically designed to support the demanding electrical and mechanical needs of servo motor applications. They provide excellent conductivity, stable signal transmission, and robust mechanical connections, which are fundamental for the precise control required in AC Servo Drive systems and Electro Hydraulic Servo applications. Additionally, their compatibility with Hydraulic Brake Motors makes them a versatile choice for industries ranging from robotics and automation to heavy machinery and automotive systems.

In summary, the Servo Motor Connectors featuring multiple pin configurations (4PIN, 6PIN, 8PIN, 12PIN, 17PIN), dual mounting types (Panel Mount and Cable Mount), and flexible termination options (Crimp and Solder) offer an ideal solution for high-performance servo motor connectivity. Their high insulation resistance, particularly in 6PIN and 7PIN versions, ensures safe and reliable operation in complex Electro Hydraulic Servo and Hydraulic Brake Motor systems. Whether you are upgrading your AC Servo Drive infrastructure or designing new servo motor controls, these connectors provide the quality, durability, and versatility needed to meet and exceed industry standards.

Features:

• Product Name: Servo Motor Connectors (6FX2003)
• Material: Metal and Plastic for durability and flexibility
• Wire Gauge Compatibility: Supports 18-24 AWG or more, AWG 3-12 diameter
• Connector Type: Specifically designed for Servo Motor applications
• Contact Plating: Features Silver and Gold-plated pins for excellent conductivity
• Ideal for DC Servo Motor Drive systems
• Compatible with High Torque DC Servo Motor setups
• Suitable for Brushless Servo Motor connections

Technical Parameters:

Applications:

The NO MARK 6FX2003 Servo Motor Connectors are specially designed for high-performance applications in the field of industrial automation. Manufactured in China and certified with CE and ISO9001, these connectors ensure reliable quality and durability under demanding conditions. With a wide operating temperature range from -40℃ to +105℃, the 6FX2003 connectors are ideal for environments that require stable performance in both extreme cold and heat.

These connectors are perfectly suited for use with DC Servo Motor Drives, providing a secure and efficient connection that supports precise control and rapid response in servo systems. Their robust design, combined with the availability of multiple contact configurations including 4PIN, 6PIN, 8PIN, 12PIN, and 17PIN options, makes them versatile for various servo motor setups. The contacts feature silver plating and gold-plated pins, ensuring excellent conductivity and resistance to corrosion, which is critical for maintaining signal integrity in sensitive servo applications.

The 6FX2003 connectors also find extensive use in Brushless Servo Motor systems, where compact and reliable connections are essential for optimal motor performance and longevity. Their design supports high current and voltage requirements, making them a dependable choice for integrating brushless motors into complex automation machinery. Additionally, their sturdy construction and packaging in carton boxes facilitate safe delivery and handling, with a minimum order quantity of 100 units, suitable for both small-scale and large-scale industrial projects.

In electro-hydraulic servo applications, where precise control of hydraulic actuators is necessary, the NO MARK 6FX2003 connectors play a crucial role. They enable secure and stable connections that are vital for maintaining system responsiveness and accuracy. With a supply ability of 1000 pieces per day and a delivery time of just 1-3 working days, these connectors support rapid deployment and production schedules.

Payment terms such as T/T and PayPal provide flexible options for procurement, making the 6FX2003 connectors accessible to a wide range of industrial customers worldwide. Whether in automation factories, robotics, or specialized servo motor drive systems, the NO MARK 6FX2003 Servo Motor Connectors deliver exceptional performance and reliability for critical servo motor applications.

Customization:

Our Servo Motor Connectors, model number 6FX2003, are designed for high-performance applications in industrial automation. Manufactured in China under strict quality control with CE and ISO9001 certifications, these connectors ensure reliable and durable connections for Electro Hydraulic Servo systems, AC Brushless Servo Motors, and DC Servo Motor Drives.

With a connector type specifically tailored for servo motors, these connectors support wire gauges ranging from 18-24 AWG or larger, including AWG 3-12 diameter wires, accommodating a wide variety of wiring needs. They operate efficiently within a temperature range of -40℃ to +105℃, making them suitable for demanding industrial environments.

Each connector offers excellent insulation resistance options available in 6PIN and 7PIN configurations, ensuring optimal electrical performance and safety. The minimum order quantity is 100 pieces, with a supply ability of up to 1000 pcs per day, allowing for both small and large scale production requirements.

Packaging is provided in sturdy carton boxes to protect the connectors during transit, and delivery time is prompt, typically within 1-3 working days. Payment terms are flexible, accepting T/T and PayPal, facilitating smooth transactions for our customers worldwide.

Choose our 6FX2003 Servo Motor Connectors for your Electro Hydraulic Servo, AC Brushless Servo Motor, and DC Servo Motor Drive applications to ensure high quality, reliable connection solutions tailored to your industrial automation needs.

Support and Services:

Our Servo Motor Connectors are designed to provide reliable and secure connections for servo motor applications in various industrial and automation environments. These connectors ensure optimal signal transmission and power delivery, supporting high-performance servo motor operations.

For technical support, we offer detailed product documentation, including datasheets, wiring diagrams, and installation guides to assist with proper connector selection and usage. Our experienced support team is available to help troubleshoot any issues related to connector compatibility, signal integrity, and mechanical installation.

We also provide customization services to tailor the connectors to specific application requirements, including variations in pin configurations, cable lengths, and environmental protection levels.

Maintenance and servicing guidelines are provided to ensure the longevity and reliability of the connectors in demanding operational conditions. Regular inspection and cleaning recommendations help prevent connection failures and maintain optimal performance.

Our technical support services are committed to ensuring customer satisfaction and the successful integration of our Servo Motor Connectors into your systems, enabling efficient and uninterrupted servo motor functionality.
